SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Wind Controller,Lighting Controller,Solar System Controlle,Solar Working Station

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Conversion Efficiency: >98%

High-concerned chemical: None

Humidity (°C): 10% to 90% No condensation

MAX Solar Module Voc: 105V

Model Number: JNGE

Origin: Mainland China

Protection Grade: IP30

Solar Module Workable Power: 0W~3000W

Solar Panel Module Vmp: Vbat+1

Usage: BOAT,CAR,Electric Bicycle,FAN,Home Appliance

Wifi communication function: optional

Wind Turbine DC Rated Voltage: 18VDC 36DC 72DC AUTO

Wind Turbine Rated Voltage: 12VAC 24VAC 48VAC AUTO

Wind Turbine Workable Power: 0W~3000W

Upgrade  MPPT  12V 24V 48V Auto

WIFI Remote Communication

PFAN: 0~3000W Ppv: 0~3000W

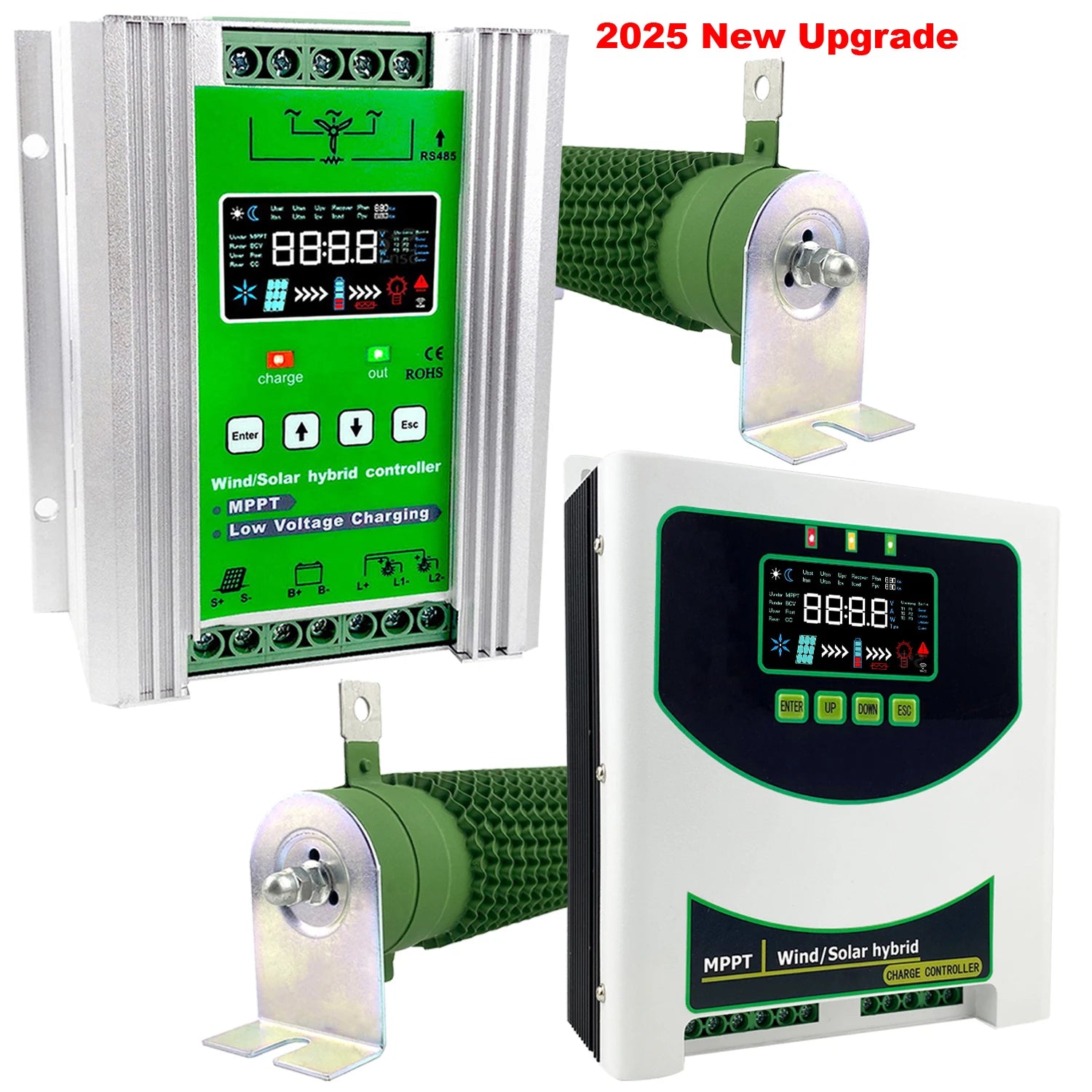

Hybrid Wind Solar Charge Controller

Support battery types：1.Sealed ，2.LiFeP04 , 3.LiNiCoMn , 4.Custom ( All battery types )

Product Description:

This type controller is 12/24/48V system voltage automatically reorganize, the system voltage depends on your battery bank, for example, if your battery bank is 24V, then your the system voltage is 24V, in the same way, DC load Rated Voltage is 24V.

Below is the matching recommendation for these different system voltage:

12V battery bank: 12V wind generator +about 18V Vmp solar panel array

24V battery bank: 24V wind generator + about 36V Vmp solar panel array

48V battery bank: 48V wind generator + about 72V Vmp solar panel array

Below is clarification for hybrid controller model:

eg. WS3000W1515

means 1500W Wind + 1500W Solar

means The system can support rated 1500W wind generator and rated 1500W solar panel array.

If you need the latest parameter sheet, please share us your email, we will sent to you.

*Note1: For our Deluxe version hybrid controller,The default is lead-acid battery, you can enter the Bat-T-N battery type setting interface to change it.

*Note2: For our Deluxe version hybrid controller, we have two system voltage version, 12/24V or 12/24/48V automatically reorganization*

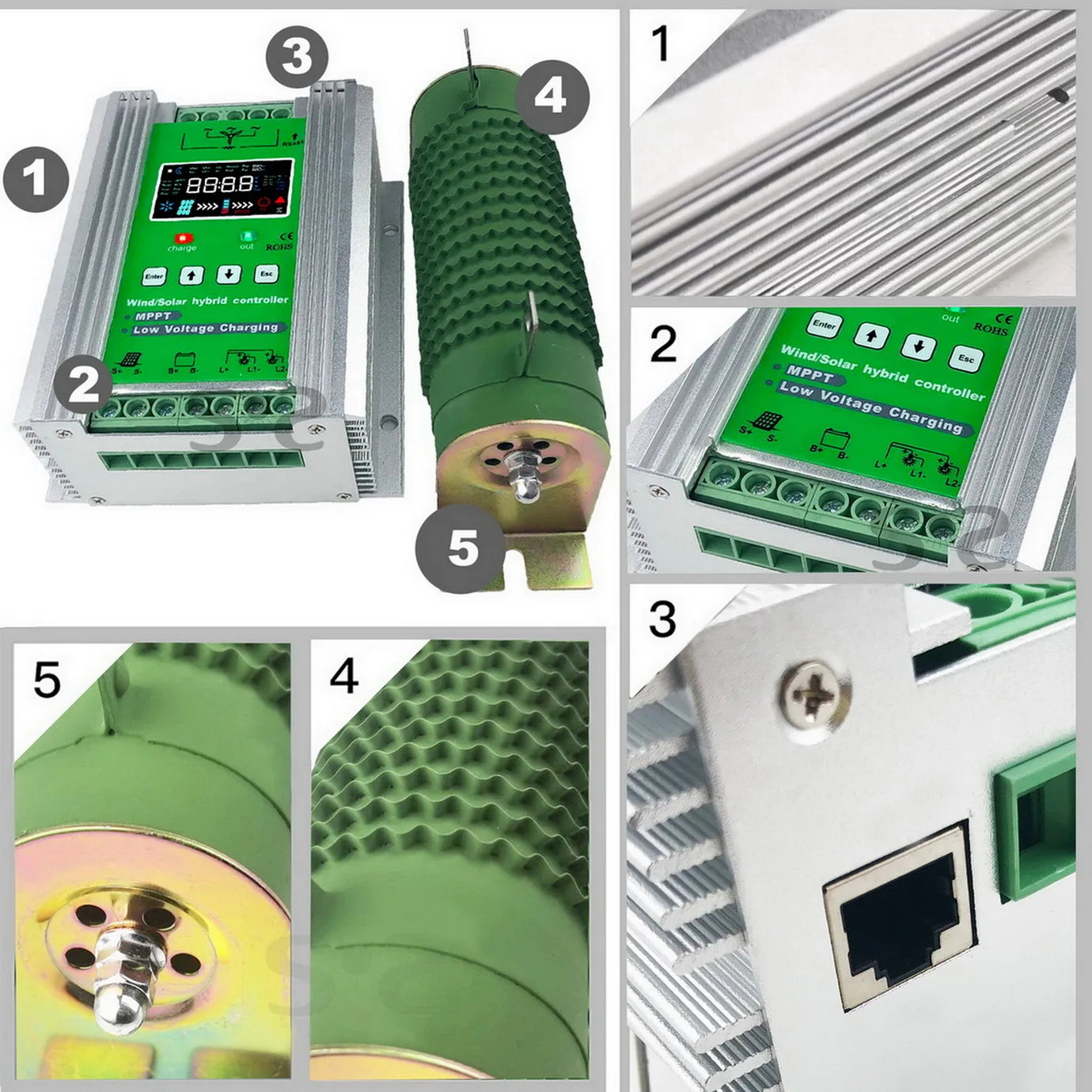

Product Highlights.

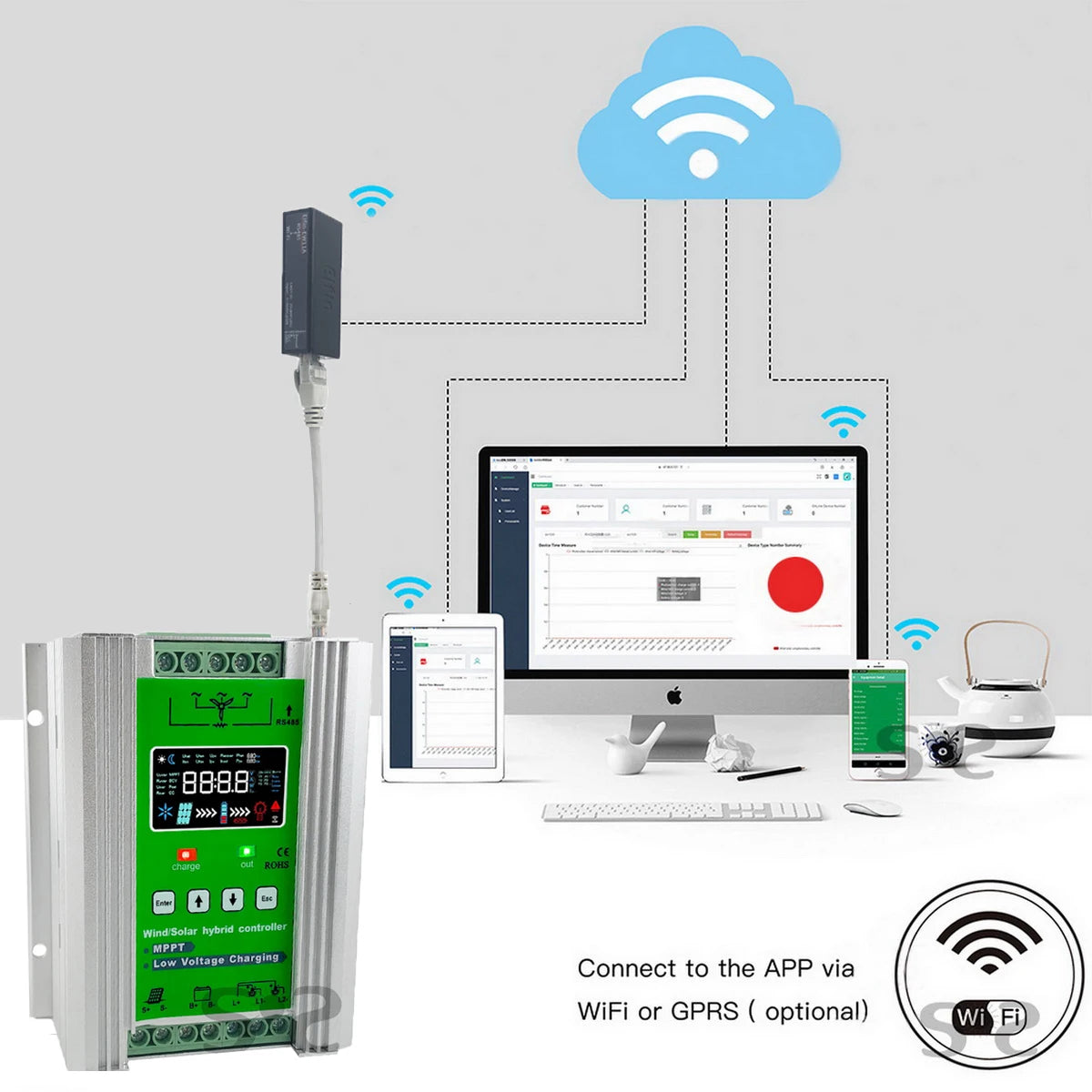

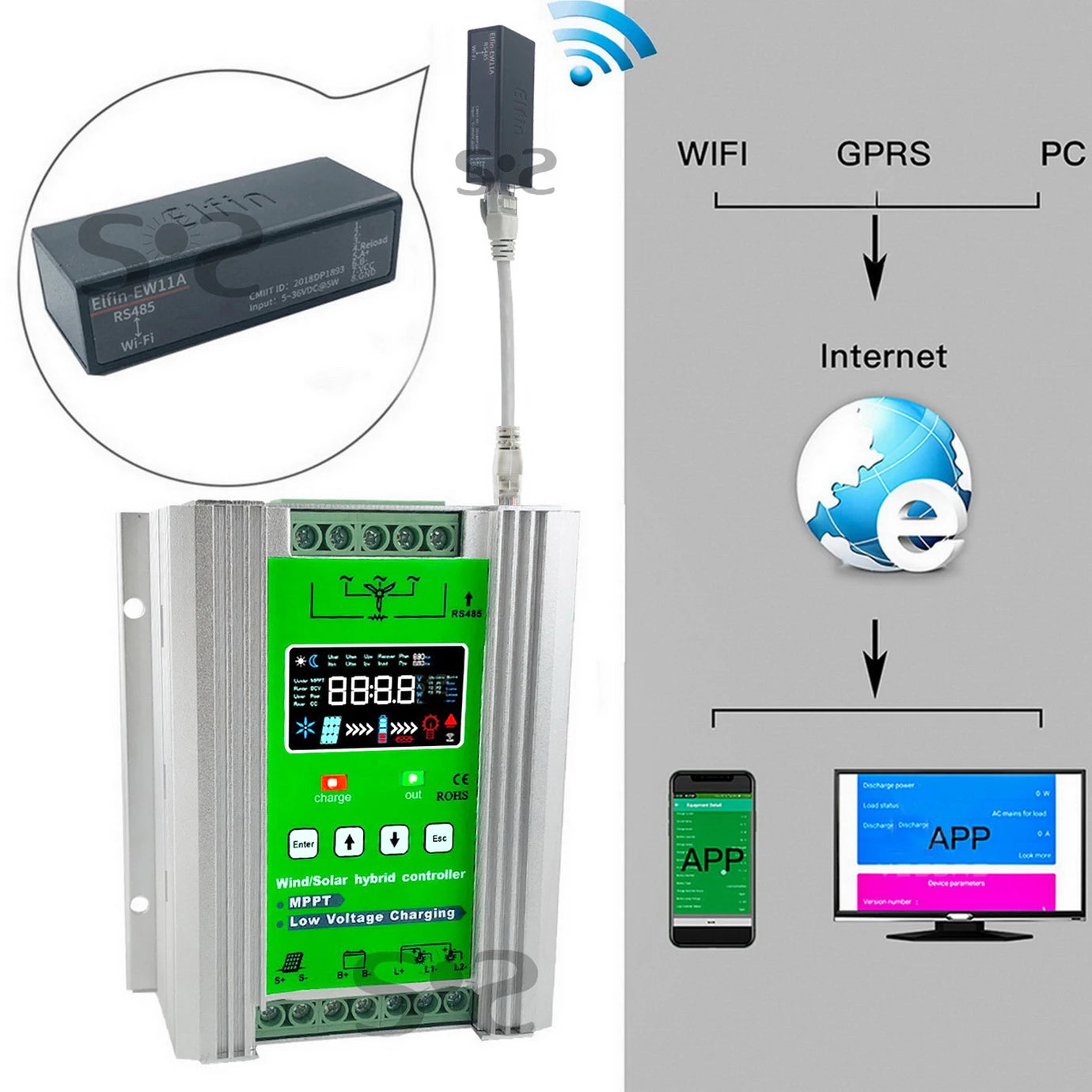

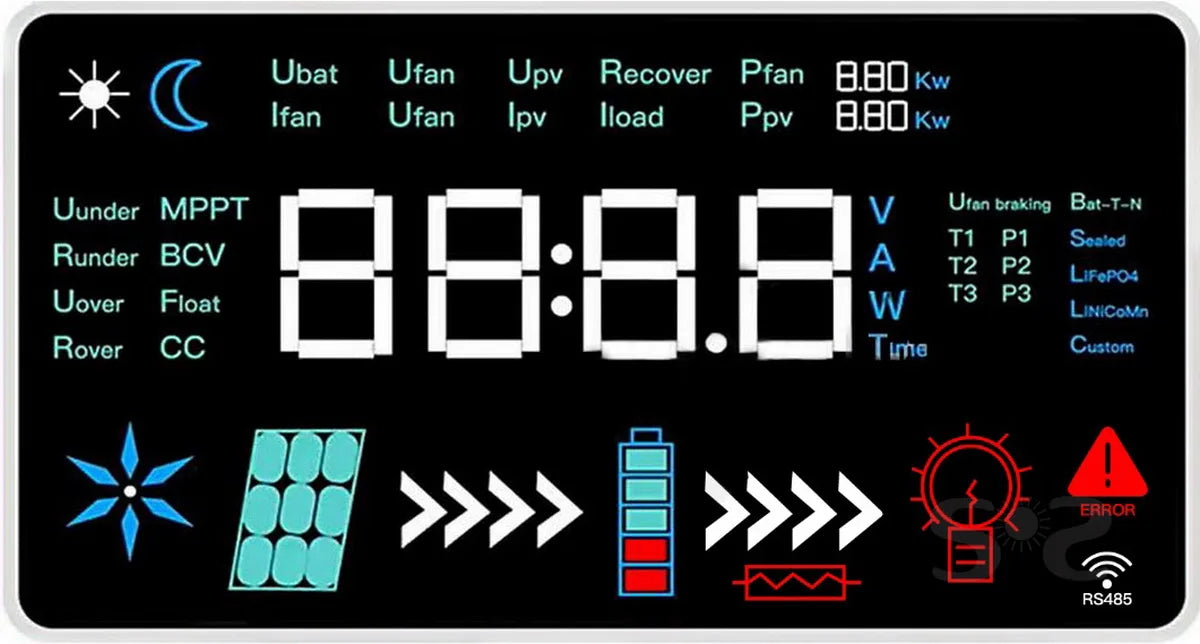

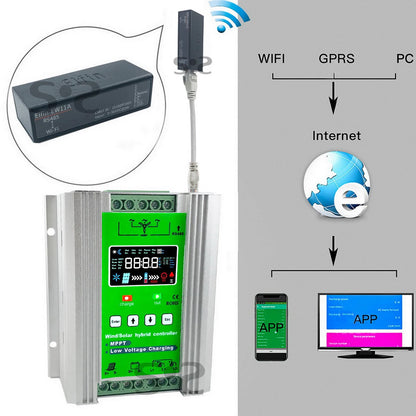

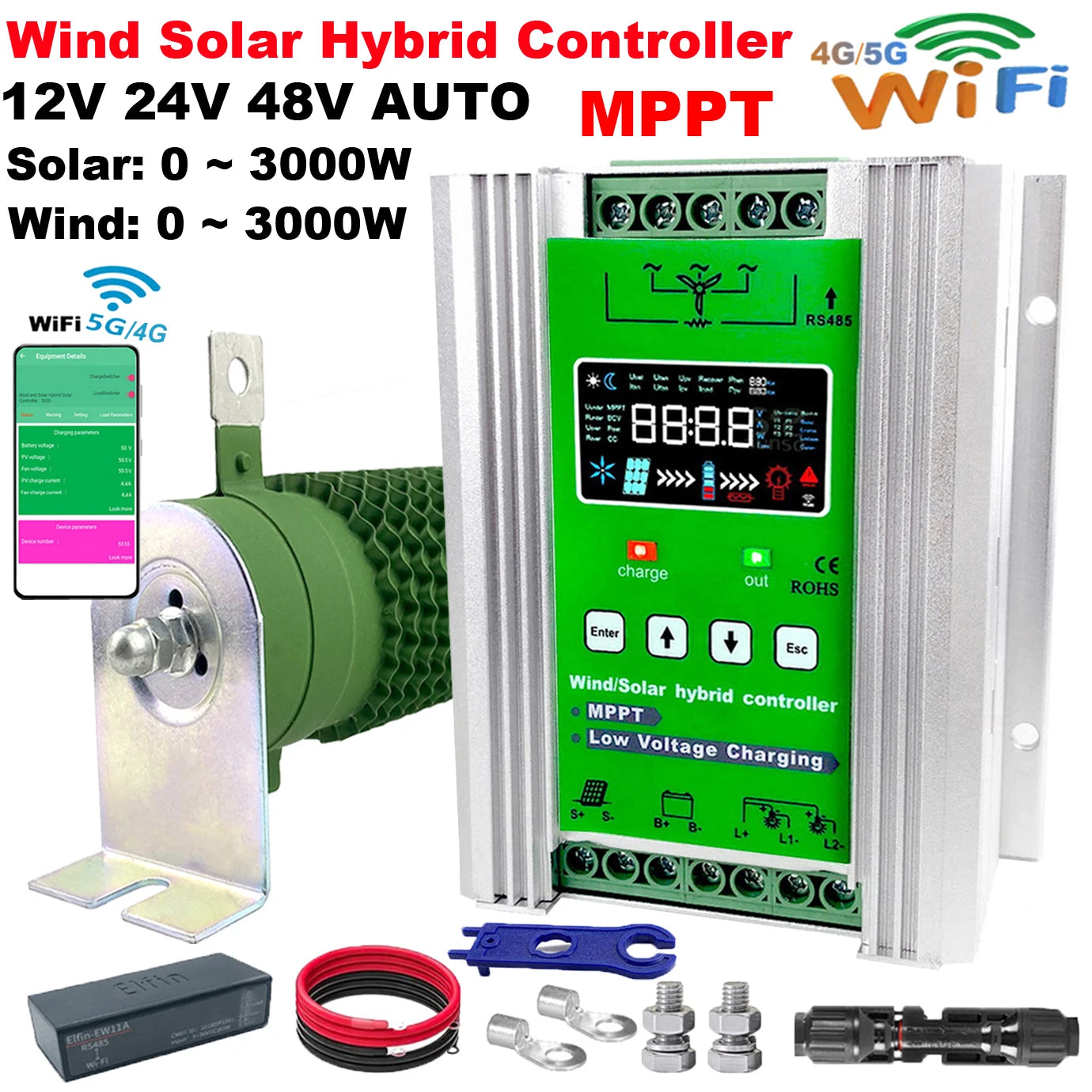

The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring (optional).

Product Application.

The controller is suitable for wind solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields.

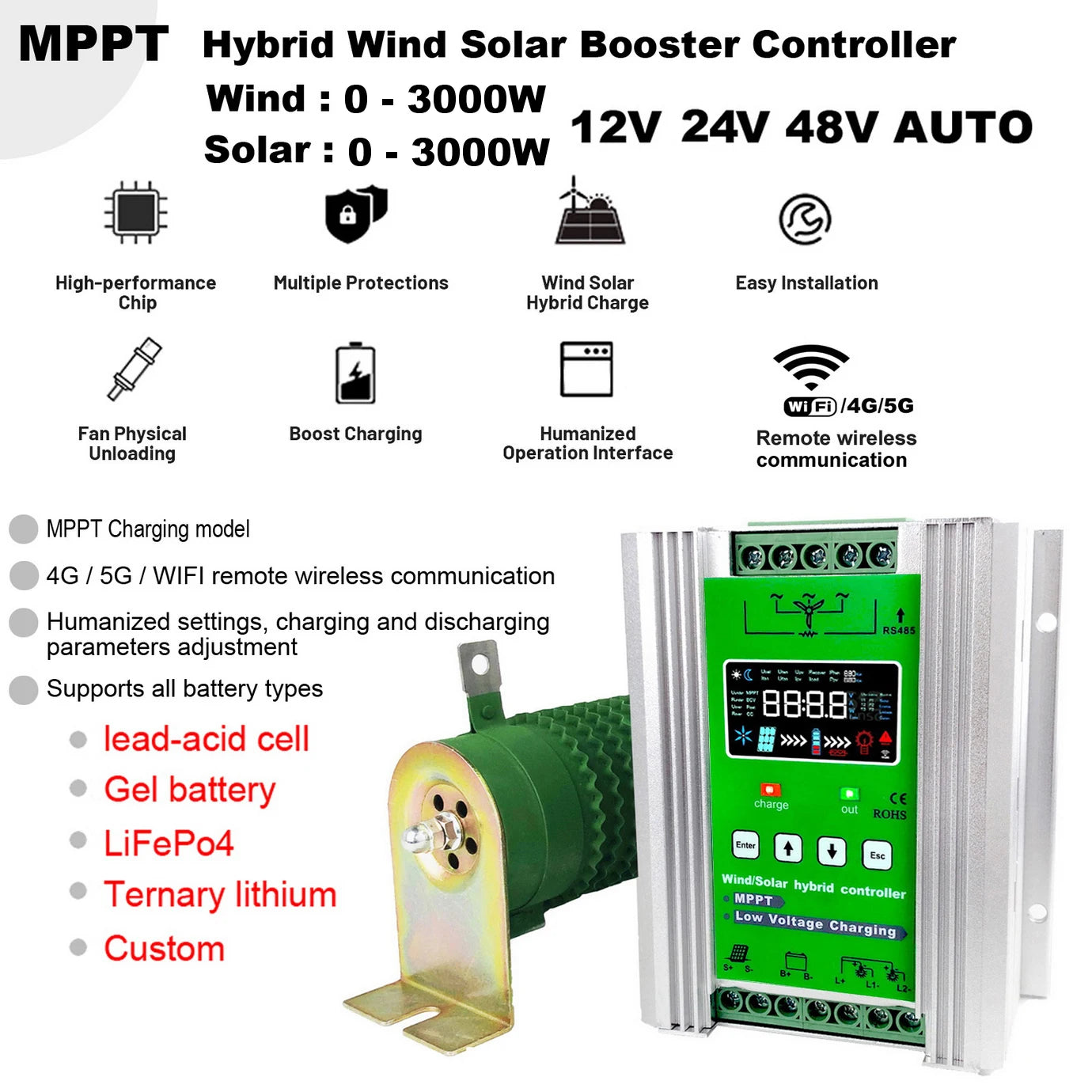

Product Features.

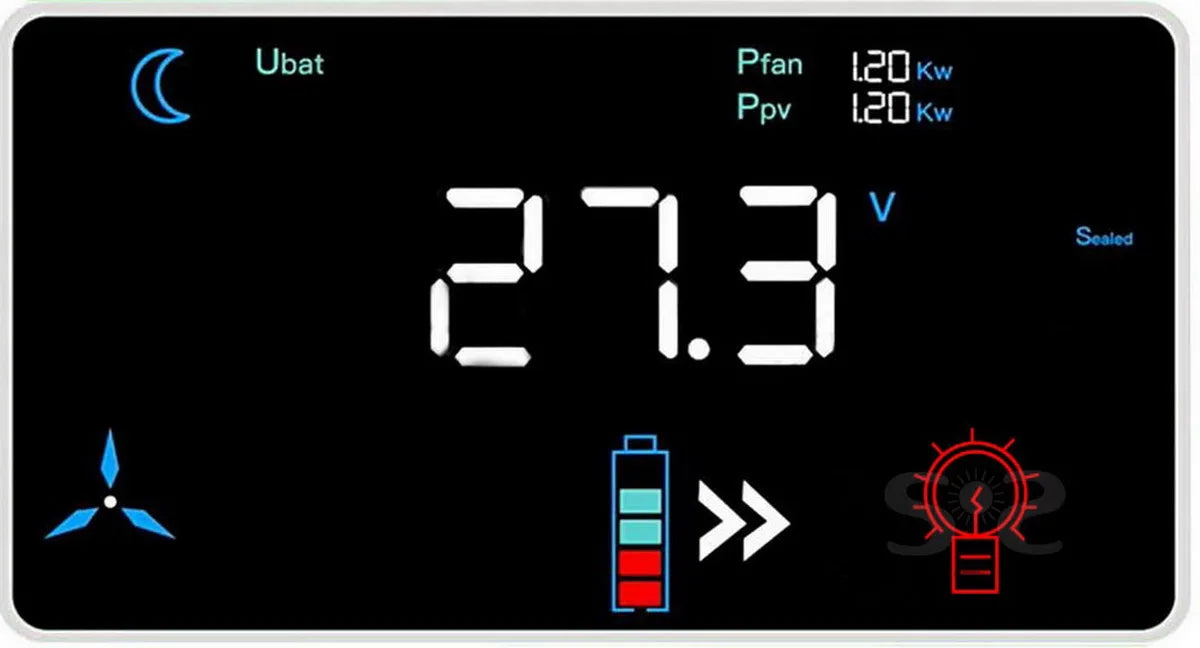

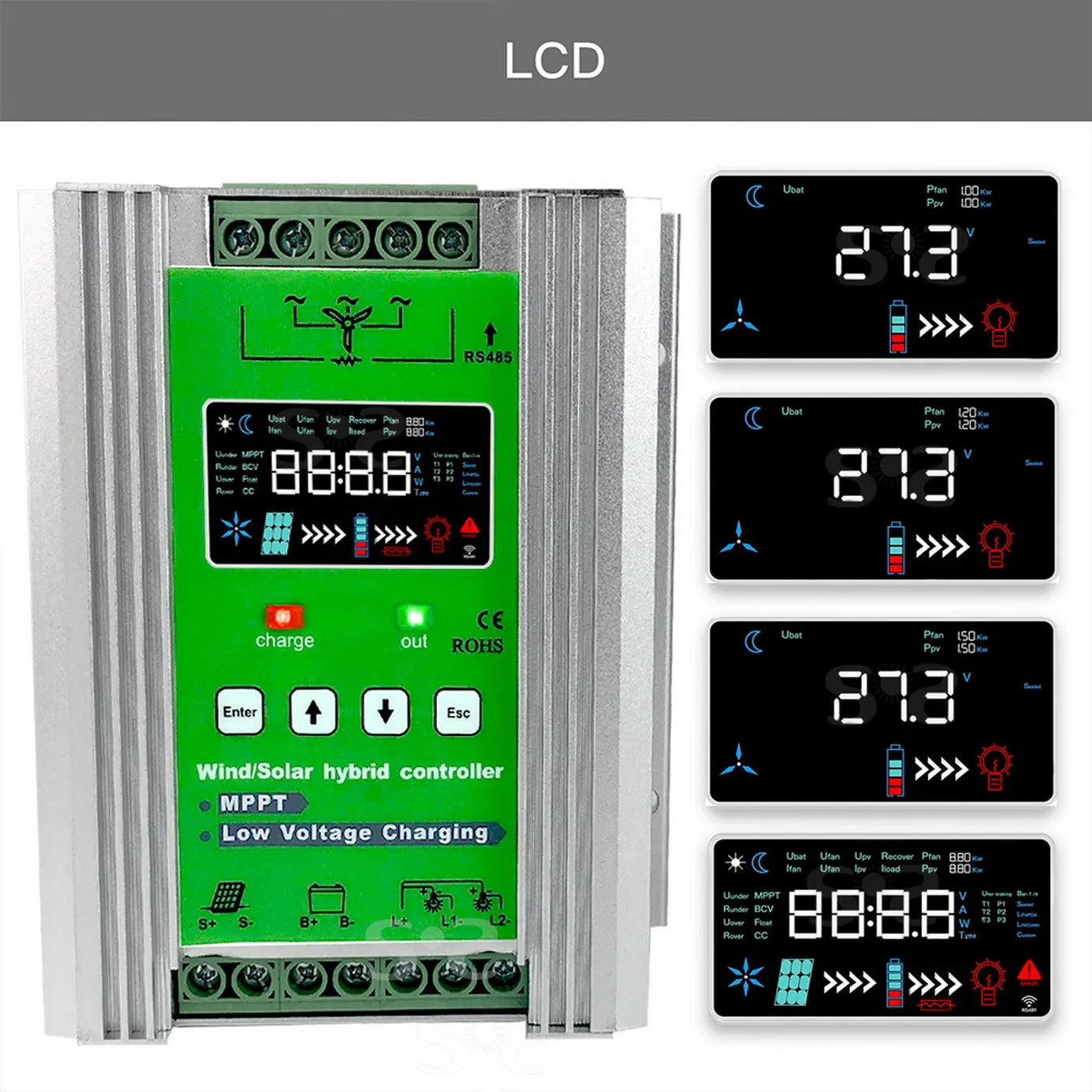

(1) The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;

(2) The MPPT control algorithm used for Wind charging ensures MPPT charging at low wind speed;

(3) Wind three-stage charging mode: MPPT charging; lifting charging; floating charging.

(4) Solar three-stage charging mode: CC (constant current); lifting charging; floating charging.

(5) 12V/24V battery system automatically recognizes, or 12V/24V/48V battery system automatically recognizes (Optional).

(6) RS485 communication can provide communication protocol to facilitate unified management and secondary development for customer;

(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional );

(8) The controller has comprehensive protection functions such as over charge, over discharge and overload;

(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;

(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;

(11) The controller has wide adaptability, adaptive day and night.

Product Parameter:

2. Battery Parameter

Product Application:

Product Features:

Note: Monitoring background supports WIFI module and GPRS module expansion to achieve APP cloud monitoring (optional), see APP operation manual for details; The controller defaults to lead-acid batteries. If you need to connect the other types of batteries, you need to set the corresponding battery type and series number. For details, please refer to the relevant settings of the APP manual.

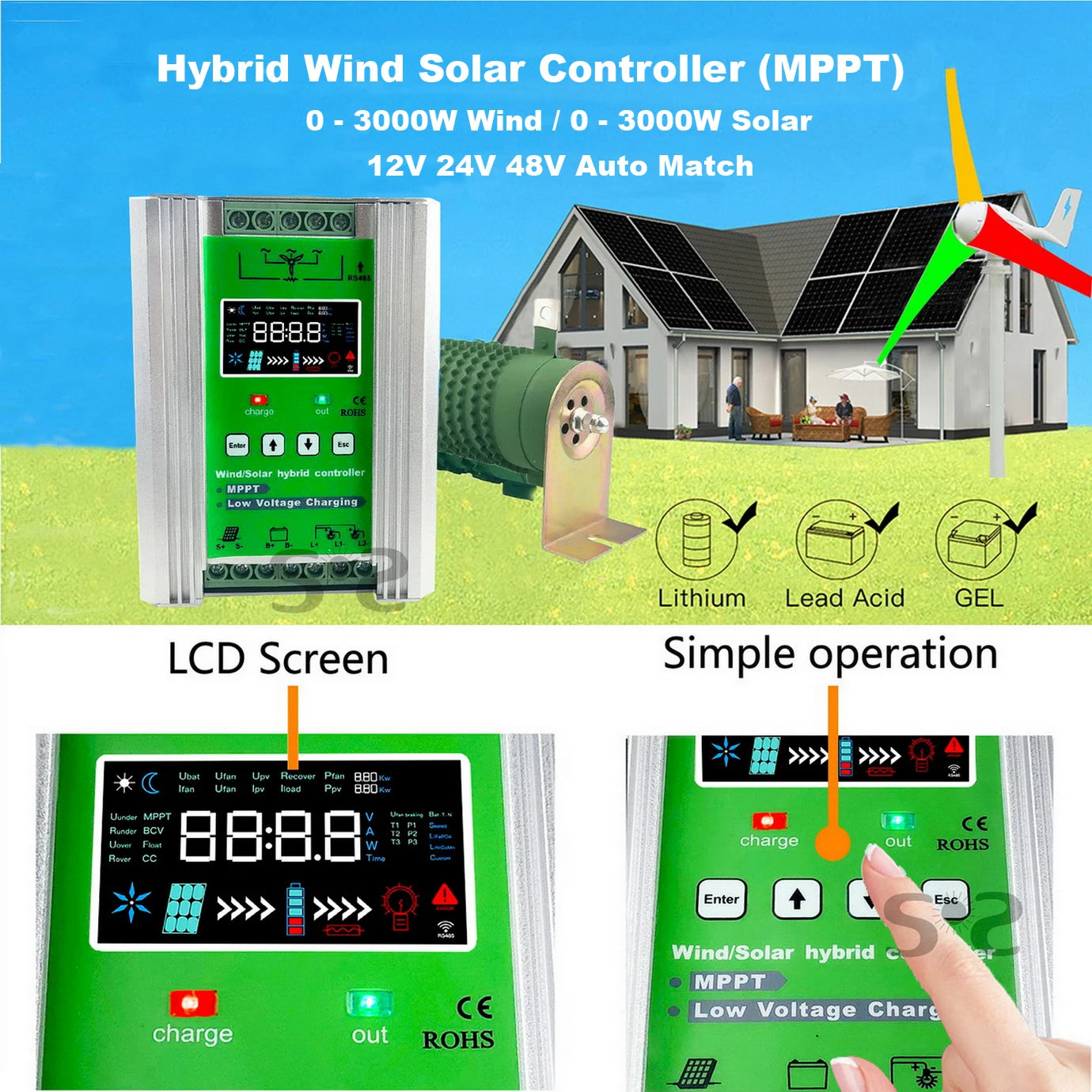

Large Size Screen Design

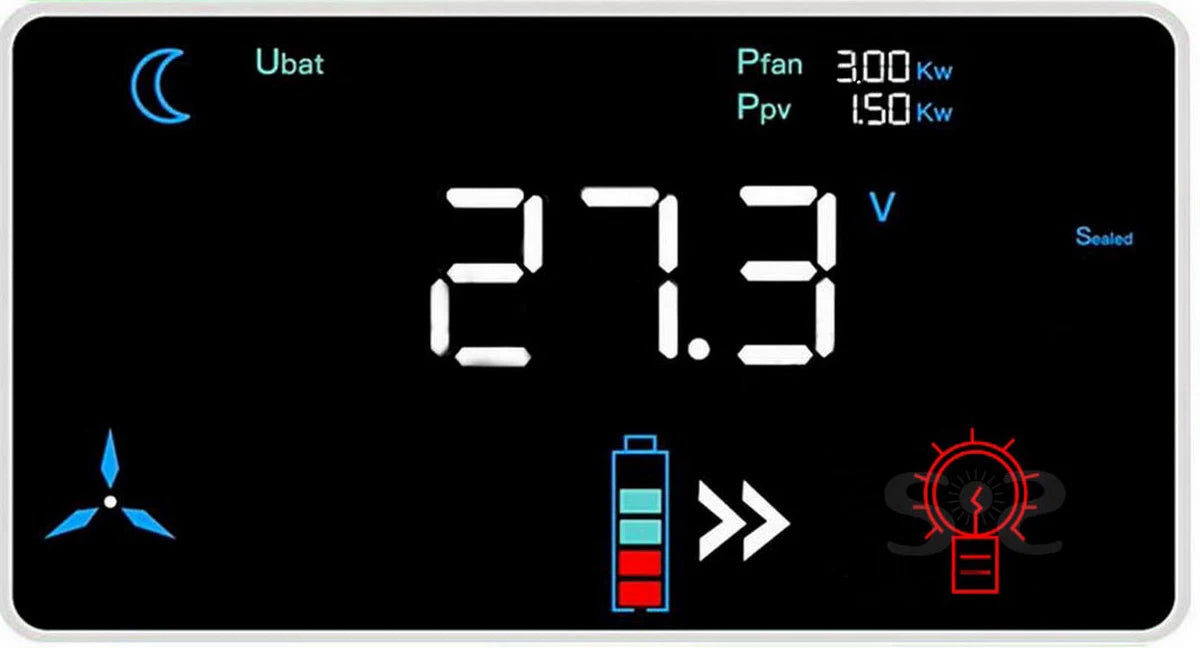

Screen for 1000W Solar Panel and 1000W Wind generator

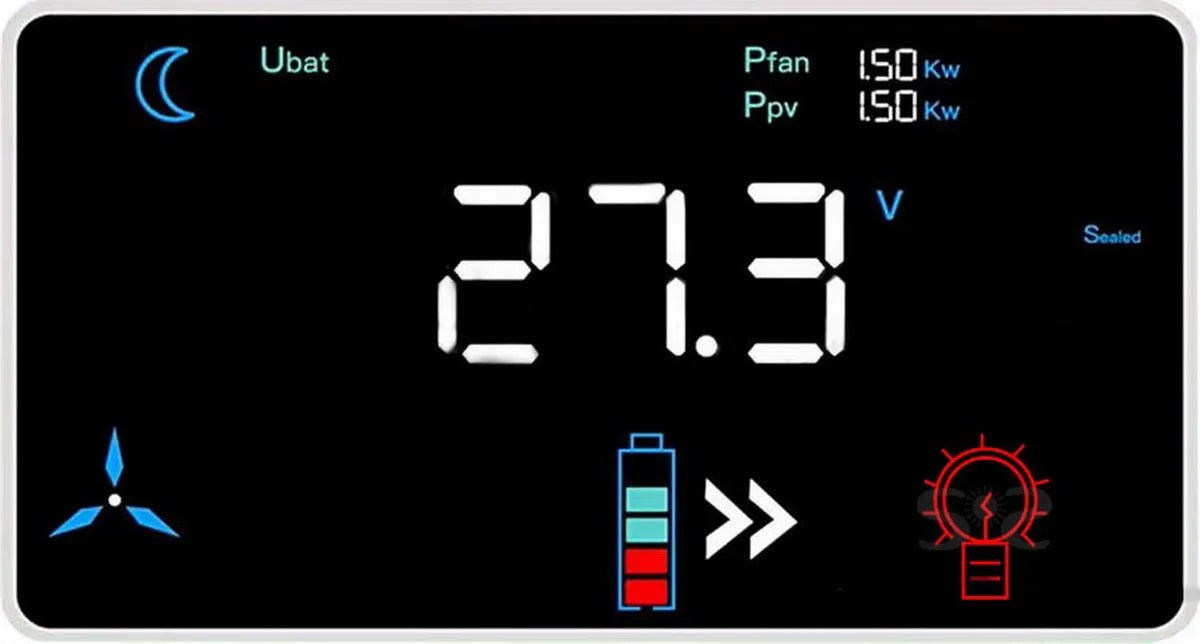

Screen for 1200W Solar Panel and 1200W Wind generator

Screen for 1500W Solar Panel and 1500W Wind generator

Screen for 1500W Solar Panel and 3000W Wind generator

Note: to know about more instruction and model, please contact us for FREE beautifully illustrated user manual(with various hybrid contoller product catalogue)

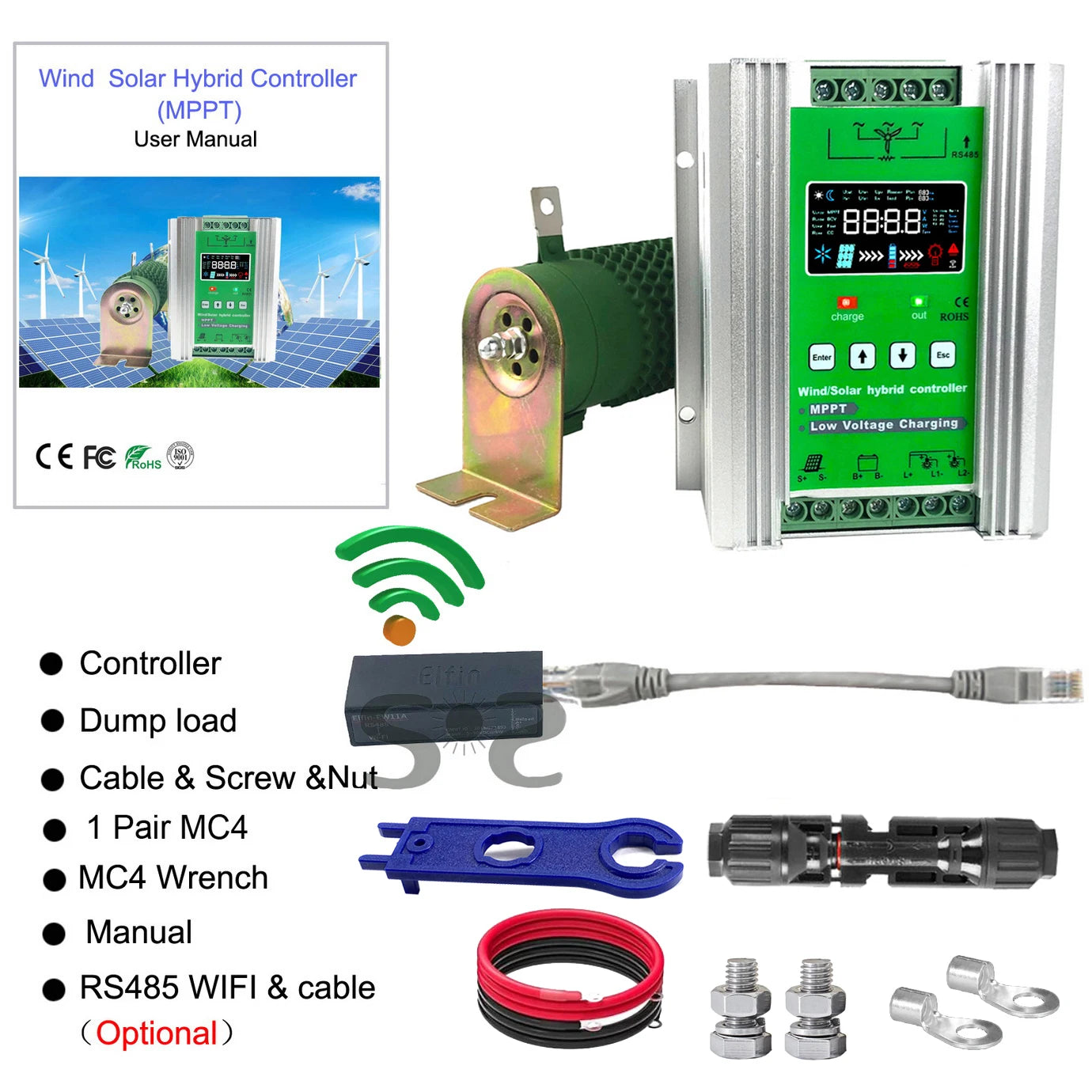

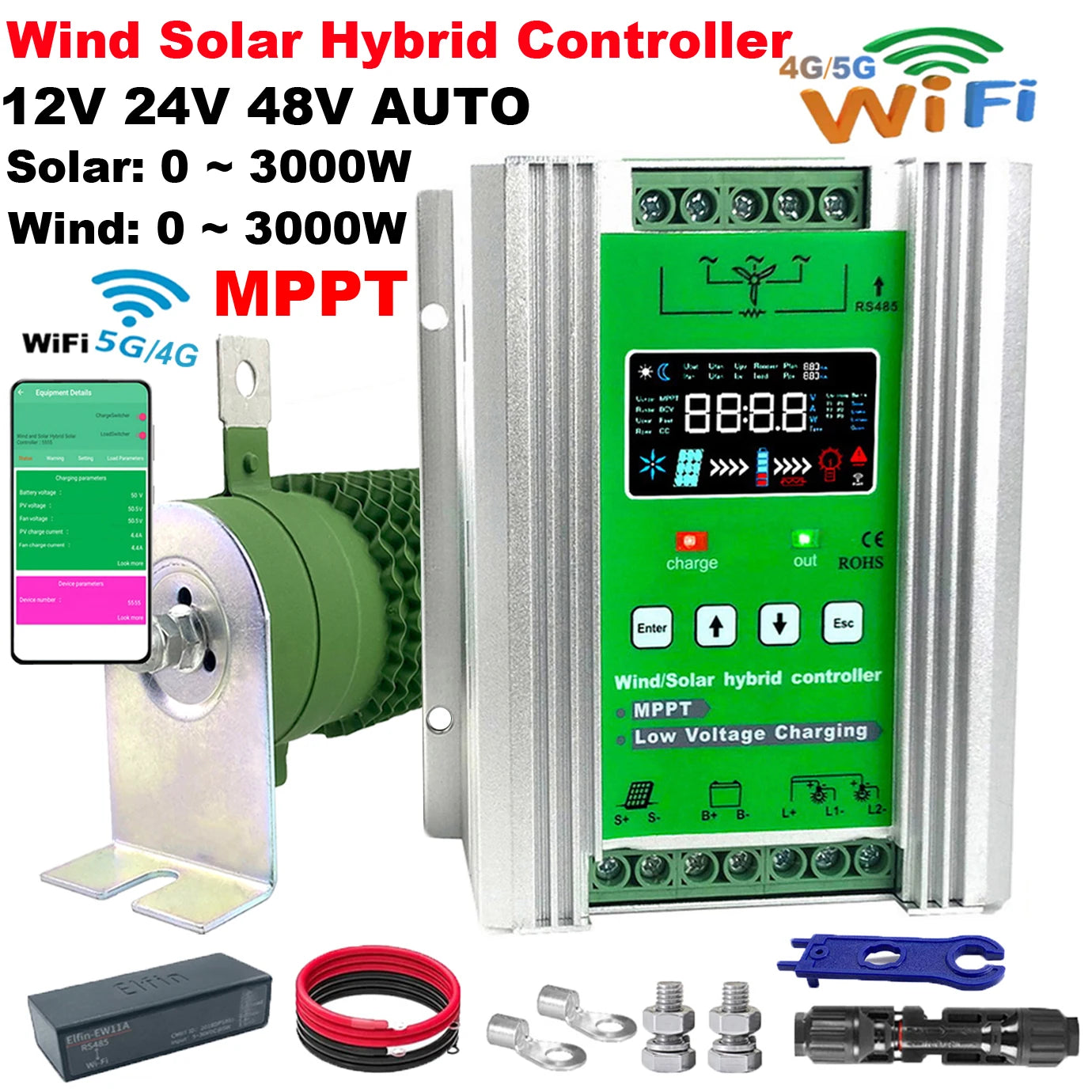

list of items：

FAQ

1.Why choose MARS ENERGY as a provider of products?

(1) Mars Energy is famous brand on the world market in new energy business. We have strong R&D technical teams and professional production lines;

(2) Mars Energy is a manufacturer specializing in the production of controller from China. It has a complete quality management system and cost control advantages;

(3) Mars Energy is a leader in cross-border e-commerce. After many years of operation, Mars Energy has completed the integration,Cooperate with world-renowned express logistics. Local delivery can be done quickly;

(4) Mars Energy has established sales and after-sales teams in several countries, which can provide pre-sales guidance and after-sales service in a local language;

(5) Since becoming a golden member of AL ABABA in 2005, Mars Energy has won praises from more and more customers around the world for its professionalism, responsible attitude and high quality.

2.How to connect these 3 terminals of controller with my wind output wires?

(1) To AC wind turbine, any one of three wires from wind turbine can be connected with any terminal of wind on your controller. For they are non-electrode;

(2) To DC wind output is 2 wires(Positive Negative) , you can connect them with any wind terminals on your controller.

3.How many connecting ways user can choose when using this controller?

For the wind charging and Solar charging are independent, so user can choose any one of the following as the connection method :

(
1) Only connect wind turbine generator to charge battery;

(2) Only connect solar to charge battery;

(3) Connect wind turbine and solar to build a hybrid wind solar power system to charge battery.

4.Can i only connect wind turbine as generator to charge battery when i get my controller?

Yes, you can to do so. But for the main purpose of such controller designs for low power consumption equipment charging, such as: street lights and monitoring etc. So establish hybrid wind solar system can get better charging guarantee. Because most of low-power wind turbine is installed in or close to the residential place, wind generation efficiency is not high due to the low wind speed and short working time.

5.How to connect my system when I get this controller?

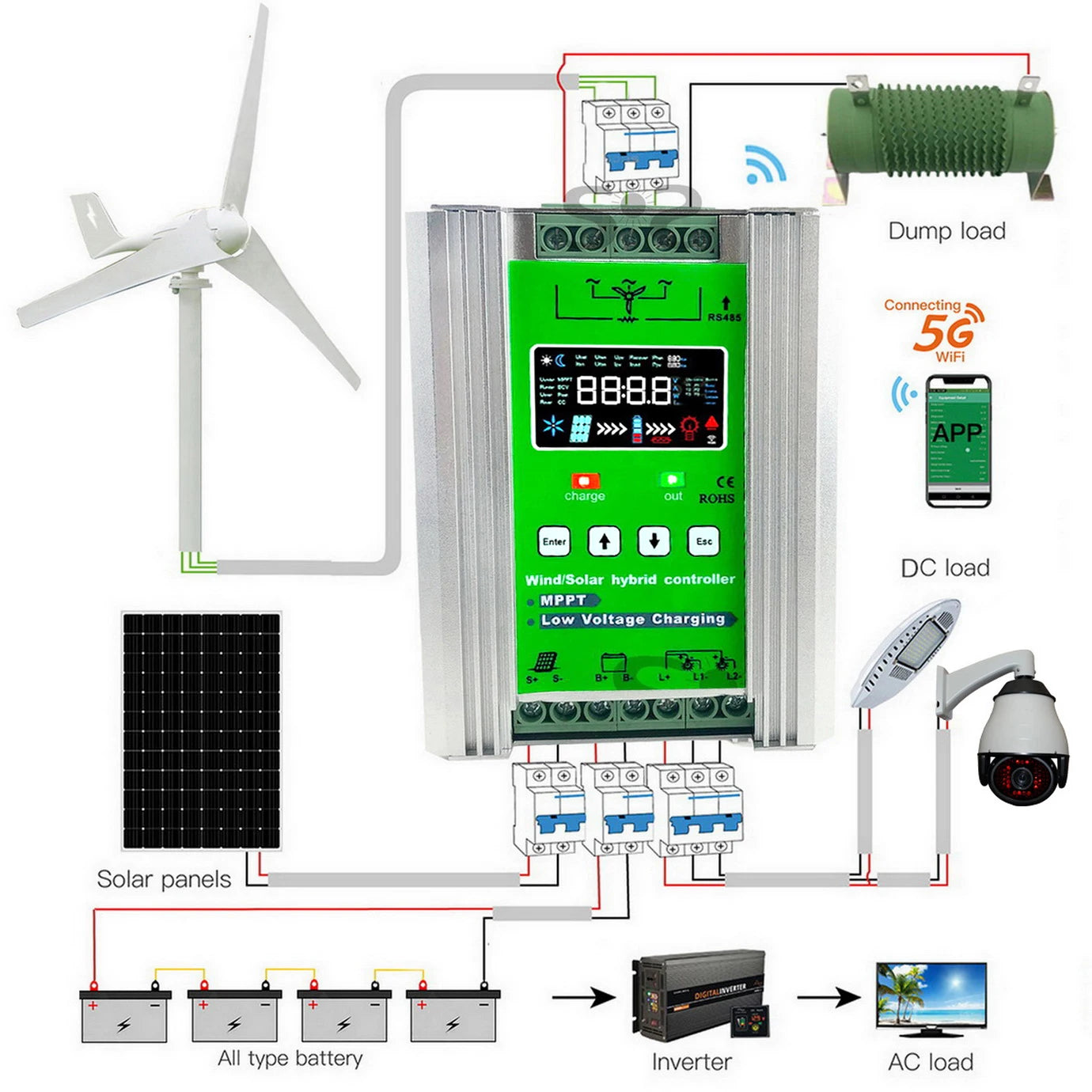

We strongly recommend user to install air switch between all DC and AC input or output. Then please turn on the breaker/ air switch in this order:

(1) First turn on the breaker between battery and controller;

(2) Second turn on the breaker between wind and controller;

(3) Third turn on the breaker between DC load and controller;

(4) Final turn on the breaker between Solar and controller.

Remark: If you want to shut down the system, please proceed in the reverse order as above.

6.Do i need to install additional light protecting for my power system?

Yes, it is best way to install additional light protecting.

7.How the controller to operate when the wind speed is too fast?

(1) For the output voltage or current from wind generator which beyond the safety range, the controller will automatically turn on the brake and gradually slow down. Meanwhile, the dump load will start to consume excess current immediately.

(2) But when encountering strong storm weather, such as hurricane, typhoon, it is strongly recommended to put down the wind turbine immediately.

8.How to design hybrid wind solar power system voltage, 12V, 24V, 48V, which one is best to me?

(1) The system voltage is equivalent to the voltage of the battery pack;

(2) Once the battery voltage designed, the input voltage from wind turbine generator and solar modules must be matched according to the specifications in the parameter table;

(3) Therefore, users cannot simply think that more lower voltage design, can get more bigger charging current but ignore that the excessive current has exceeded the working range of the controller or battery to damage the controller or battery.

9.Why designed in MPPT?

(1) Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used;

10.When the wind generator is connected to the controller, why its running speed becomes very slow immediately?

(1) The battery reaches the floating voltage;

(2) The rated output voltage of the wind generator is much higher than the battery, because the speed of the wind generator is proportional to the output voltage, and the voltage is dragged by the battery, so the speed will be very low;

11.Why wind generator dump load when the controller displays small current?

The controller protect the all system by detecting battery voltage, charging current and temperature and so on. When the battery reach floating charge voltage or high temperature, the wind generator will dump load, no matter how much charging current it is.

12.Why there showing no charging current on LCD screen but the wind is running or the solar is working?

Only when the input voltage Reach MPPT startup voltage (8V/16V/32V)then it can charge.But the prerequisite is that the battery is properly connected and not fully charged.
